IoT based Energy meter
1.6k
Components Used
Powered by
Pzem-004t
× 1

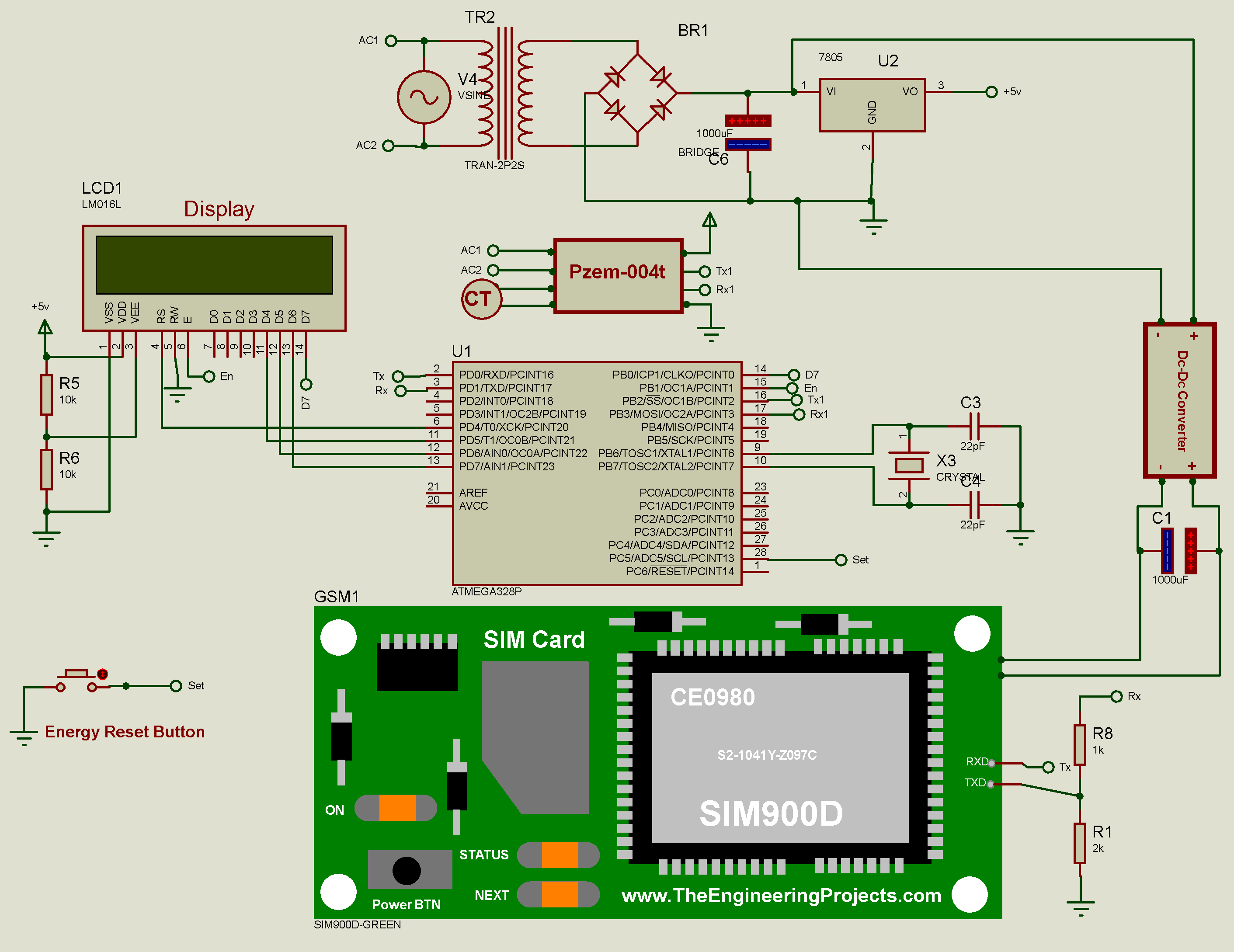

- Designed the circuit in PROTEUS SIMULATION SOFTWARE: The circuit diagram was designed using PROTEUS simulation software.
2. Components assembly: The circuit was assembled on a veroboard, firstly the power supply was built.
we have two power supplies; 5volts and 4.1vdc Power.
7805 was used to power the main circuit while DC DC converter was using to step down the 12v to 4.1v for the sim800l since the module's maximum operating voltage is 4.1v
Then other components was carefully soldered upon the board.
3. I constructed the case using perspex board
The database is MongoDB
Finally the packaged project
Web dashboard
YouTube Video
Downloads
Credits
Built by 1 contributor
Comments4
Join the discussion — share a question or tip.
Dear, can you share Pzem Proteus lib?
can u give a pzem-004t proteus lib
hi. thank you for sharing your project but i do have some questions. for the power value, is the 50W value output by the PZEM or was it your calculations? was it active, reactive or apparent power? thank you in advance.
