Bot with Ingenuity

Step 1: Gather Your Components

• Arduino board (e.g., Arduino Uno)
• APR33A3 voice recording and playback module
• Bluetooth module (e.g., HC-05 or HC-06)
• Jumper wires
• Breadboard (optional)

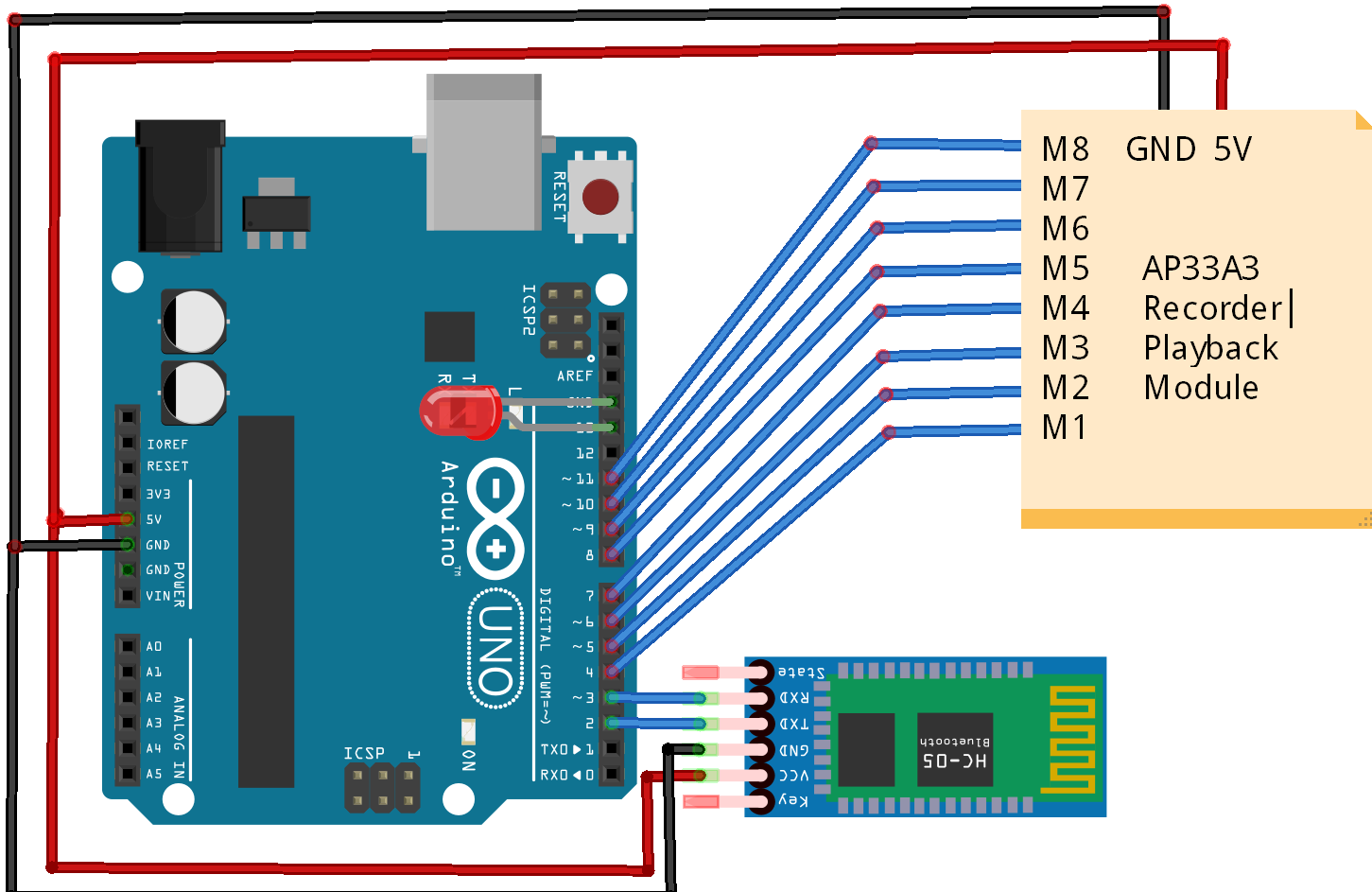

Step 2: Connections

• Connect the APR33A3 module to the Arduino:
  • VCC to 5V
  • GND to GND
  • TX to Arduino RX (pin 0)
  • RX to Arduino TX (pin 1)
• Connect the Bluetooth module to the Arduino:
  • VCC to 5V
  • GND to GND
  • TX to Arduino RX (pin 2)
  • RX to Arduino TX (pin 3)

Step 3: Upload Code to Arduino

• Write an Arduino sketch that initializes the Bluetooth module and communicates with the APR33A3 module.
• Use the SoftwareSerial library to create a secondary serial port for the Bluetooth module.
• The code should allow you to send commands from your phone (via Bluetooth) to play specific audio files stored on the APR33A3 module.

Step 4: Record Audio

• Use the APR33A3's built-in microphone to record audio.
• Follow the module's datasheet to learn how to record and store audio files on its onboard memory.

Step 5: Pair Bluetooth Devices

• Pair your phone with the Bluetooth module (use the default PIN, usually 1234 or 0000).
• Install a Bluetooth terminal app on your phone to send commands to the Arduino.

Step 6: Control Playback

• Send commands from your phone to the Arduino via Bluetooth (e.g., "play file 1").
• The Arduino should interpret these commands and trigger the APR33A3 module to play the corresponding audio file.

Step 7: Test and Refine

• Test your setup thoroughly to ensure reliable communication between the Bluetooth module, Arduino, and APR33A3.
• Adjust the code and connections as needed.
